B款-气动快装不锈钢角座阀技术参数
介质温度:-20℃~+150℃
环境温度:-20℃~+60℃
公称压力:1.6MPa
控制气体:中性气体,空气
气源压力:0.3~0.8MPa
规格:DN15-DN65
阀体材质:CF8 CF8M
阀座材质:PTFE
阀杆材质:304/316L
密封圈材质:NBR
适用介质:水、蒸汽、油、中性气体
介质温度:-20℃~+150℃
环境温度:-20℃~+60℃
公称压力:1.6MPa
控制气体:中性气体,空气
气源压力:0.3~0.8MPa
规格:DN15-DN65
阀体材质:CF8 CF8M
阀座材质:PTFE
阀杆材质:304/316L
密封圈材质:NBR
适用介质:水、蒸汽、油、中性气体
TECHNICAL PARAMETERS
Medium temperature:-20°C~+150°C
Ambient temperatur:-20°C~+60°C
Nominal pressure:1.6 MPa
Control gas, gas, air
Air pressure:0.3~0.8 MPa
Specification:DN15-DN65
The valve body material:CF8 CF8M
seat material:PTFE
Stem material:304/316L
Sealing ring material:NBR
Applicable medium: water vapor oil neutral gas
Medium temperature:-20°C~+150°C
Ambient temperatur:-20°C~+60°C
Nominal pressure:1.6 MPa
Control gas, gas, air
Air pressure:0.3~0.8 MPa
Specification:DN15-DN65
The valve body material:CF8 CF8M
seat material:PTFE
Stem material:304/316L
Sealing ring material:NBR
Applicable medium: water vapor oil neutral gas

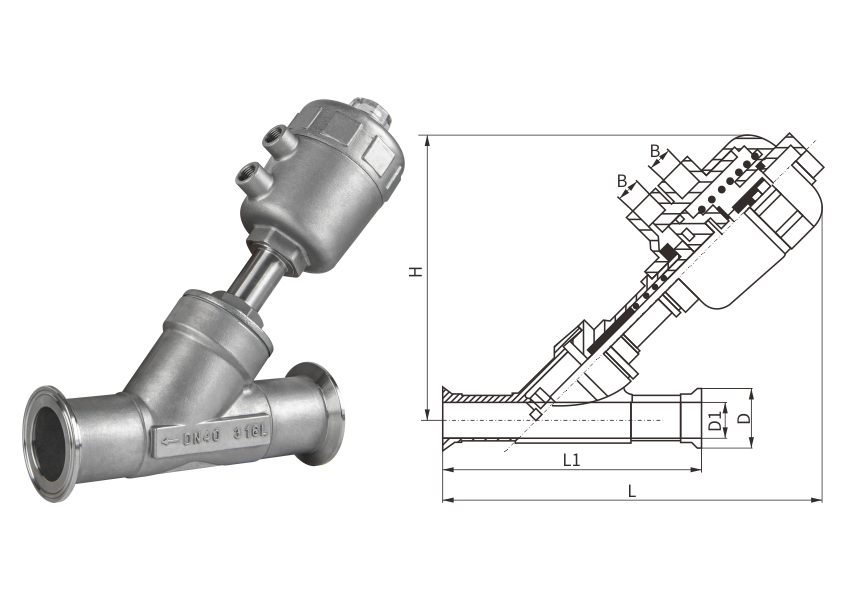

型号 model |
L | d | C | D | A | H | E | 执行器 Actuator |
DN15 | 130 | 15 | 21 | 50.5 | 180 | 137 | 64 | Φ50 |
DN20 | 130 | 20 | 25 | 50.5 | 185 | 145 | 64 | Φ50 |
DN25 | 140 | 25 | 32 | 50.5 | 190 | 183 | 64 | Φ50/Φ63 |
DN32 | 150 | 35 | 38 | 50.5 | 240 | 210 | 80 | Φ63 |
DN40 | 180 | 38 | 44 | 64 | 250 | 260 | 80 | Φ63/Φ80 |
DN50 | 195 | 48 | 54 | 64 | 300 | 300 | 80 | Φ63/Φ80 |
DN63 | 210 | 58 | 63 | 77.5 | 330 | 340 | 100 | Φ80 |
DN65 | 245 | 68 | 76 | 91 | 380 | 375 | 100 | Φ80/Φ100 |
