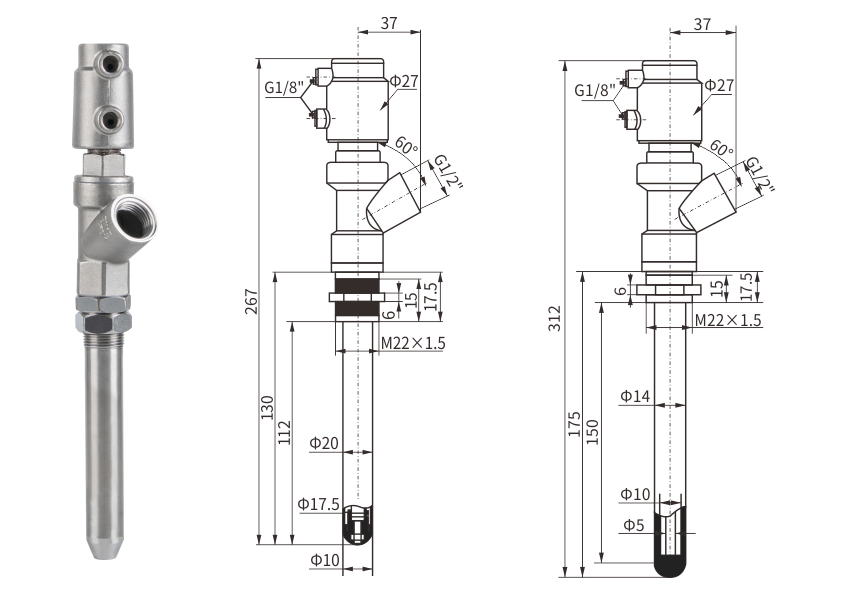

产品名称:气动灌装阀
技术参数
双作用常闭型:
管道压力:0-0.7MPa
控制压力:0.38-0.42MPa

双作用自由态:
管道压力:0-0.7MPa
控制压力:0.3-0.35MPa

阀体材质:CF8或CF8M
密封材料:PTFE
介质温度:-10°C~+120°C



TECHNICAL PARAMETERS
Double acting normally closed type:
Pipeline pressure:0-0.7MPa
Control pressure:0.38-0.42MPa

Double acting free state:
Pipeline pressure:0-0.7MPa
Control pressure:0.3-0.35MPa

Body material:CF8 or CF8M
Sealing material:PTFE
Medium temperature:-10°C~+120°C




特点

广泛应用于灌装机械,尤其适用于粘稠、膏状及容易起泡沫的液体灌装;灌装速度快,精准稳定;精致小巧,便于排管布局;灌装头底部特殊的密封设计,可以实现灌装无滴漏;灌装头底部倒角结构,具有导向定位作用,可下潜灌装。

ADVANTAGES

Widely used in filling machine commandments, Especially suitable for the filling of viscous, pasty and foamy liquids; Fast filling speed, accurate and stable; Exquisite and compact, easy to arrange the tube; Special sealing design at the bottom of the filling head, Can achieve filling without dripping; Chamfer structure at the bottom of the filling head, With guiding and positioning effect, it can be submerged in filling.
